Outer Loop

Now that you have seen how a developer can quickly start to code using modern cloud native tooling, it’s time to learn how to push the application towards a production environment. The first step is to implement a CI/CD pipeline to automate new builds. Let’s call this stage int for integration.

Install OpenShift Pipelines

To create and run the build pipeline you’ll use OpenShift Pipelines based on project Tekton. The first step is to install it:

• Install the Red Hat OpenShift Pipelines Operator
  • In the OpenShift Web Console select Operators > OperatorHub
  • Find the Red Hat OpenShift Pipelines Operator and install it with the default settings

Create App Deployment and Build Pipeline

After installing the Operator, create a new deployment of your game-changing application:

• Create a new OpenShift project called workshop-int (e.g. using the Projects menu item at the top)
• In the left menu at the top switch to the OpenShift Developer Console by clicking on Administrator > Developer
• Close the welcome pop up
• Make sure you are still in the workshop-int project by verifying in the top Project menu
• Click the +Add menu entry to the left and choose the Import from Git card
• As Git Repo URL enter the clone URL for the quarkus-build-options repo in your Gitea instance



  • There might be a warning about the repo url that you can ignore
  • Leave Git type set to other
• Click Show advanced Git options and for Git reference enter master
• As Import Strategy select Builder Image
• As Builder Image select Java and openjdk-11-el7 / Red Hat OpenJDK 11 (RHEL 7)
  • We are choosing this image as we have prepared some CVEs in a later chapter based on this image
• As Application Name enter workshop-app
• As Name enter workshop
• Check Add pipeline

• Click Create
• In the main menu left, click on Pipelines and then the instance in column Last run and observe how the Pipeline is executed



Adjust the Pipeline to Deploy to Quay

The current Pipeline deploys to the Internal Registry by default. The image that was just created by the first run was pushed there.

To leverage our brand new Quay registry we need to modify the Pipeline in order to push the images to the Quay registry. In addition the OpenShift ImageStream must be modified to point to the Quay registry, too.

Create a new s2i-java ClusterTask

The first thing is to create a new Source-To-Image Pipeline Task to automatically update the ImageStream to point to Quay. You could of course copy and modify the default s2i-java task using the built-in YAML editor of the OpenShift Web Console. But to make this as painless as possible we have prepared the needed YAML object definition for you already.

• Open a Web Terminal by clicking the >_ in the upper right of the web console,
• Click Start and wait for the terminal to initialize
• From here you can run oc commands
• The YAML object definitions for this lab are in the repo https://github.com/devsecops-workshop/yaml.git, go there and review the YAML definition.
• Apply the YAML for the new ClusterTask:

oc create -f https://raw.githubusercontent.com/devsecops-workshop/yaml/main/s2i-java-workshop.yml

You should now have a new ClusterTask named s2i-java-workshop, go to the OpenShift Web Console and check:

• Switch to the Administrator view
• Switch to the workshop-int Project
• Go to Pipelines->Tasks->ClusterTasks
• Search for the s2i-java-workshop ClusterTask and open it
• Switch to the YAML view

Please take the time to review the additions to the default s2i-java task:

In the params section there are two new parameters, that will tell the pipeline which ImageStream and tag to update.

- default: ''
    description: The name of the ImageStream which should be updated
    name: IMAGESTREAM
    type: string
- default: ''
    description: The Tag of the ImageStream which should be updated
    name: IMAGESTREAMTAG
    type: string

At the end of the steps section is a new step that takes care of actaully creating the ImageStream tag that points to the image in Quay

- env:
    - name: HOME
      value: /tekton/home
    image: 'image-registry.openshift-image-registry.svc:5000/openshift/cli:latest'
    name: update-image-stream
    resources: {}
    script: >
      #!/usr/bin/env bash

      oc tag --source=docker $(params.IMAGE)
      $(params.IMAGESTREAM):$(params.IMAGESTREAMTAG) --insecure
    securityContext:
      runAsNonRoot: true
      runAsUser: 65532

Modify the Pipeline

Now that we have our new build tasks we need to modify the pipeline to:

• Introduce the new parameters into the Pipeline configuration
• Use the new s2i-java-workshop task

To make this easier we again provide you with a full YAML definition for the Pipeline.

Do the following:

• Go to your Web Terminal (if it timed out just start it again)

• First get the YAML file:

curl https://raw.githubusercontent.com/devsecops-workshop/yaml/main/workshop-pipeline-without-git-update.yml -o workshop-pipeline-without-git-update.yml

• Now we have to replace the REPLACEME placeholders in the YAML file with your lab domain.
• Run (Insert your domain if not done automatically):

sed -i 's/REPLACEME/<DOMAIN>/g' workshop-pipeline-without-git-update.yml

• Apply the new definition:

oc replace -f workshop-pipeline-without-git-update.yml

Again take the time to review the changes in the web console:

• In the OpenShift Web Console menu go to Pipelines->Pipelines
• Click the workshop Pipeline and switch to YAML
• These are the new parameters that have been added to the pipeline:

- default: workshop
  name: IMAGESTREAM
  type: string
- default: latest
  name: IMAGESTREAMTAG
  type: string

The preexisting parameter IMAGE_NAME now points to your local Quay registry:

   - default: >-
        quay-quay-quay.apps.<DOMAIN>/openshift_workshop-int/workshop
      name: IMAGE_NAME
      type: string

And finally the build task was modified to work with the two new parameters:

tasks:
    - name: build
      params:
        [...]
        - name: IMAGESTREAM
          value: $(params.IMAGESTREAM)
        - name: IMAGESTREAMTAG
          value: $(params.IMAGESTREAMTAG)

• The name of the taskRef was changed to s2i-java-workshop, in order to use our custom Pipeline Task:

taskRef:
  kind: ClusterTask
  name: s2i-java-workshop

You are done with adapting the Pipeline to use the Quay registry!

We are ready to give it a try, but first let’s have quick look at our target Quay repository

• Go to the Quay portal and there to the openshift_workshop-int organization.
• In the openshift_workshop-int / workshop repository access the Tags in the menu to the left.
• There should be no container image (yet)



Now it’s time to configure and start the Pipeline.

• In OpenShift Web Console open the Pipelines view
• Open the workshop Pipeline
• Go to the top right menu and choose Actions -> Start

In the Start Pipeline window that opens, but before (!) starting the actual pipeline, we need to add a Secret so the pipeline can authenticate and push to the Quay repository:

• Switch to the Quay Web Portal and click on the openshift_workshop-int / workshop repository
• On the left click on Settings
• Click on the openshift_workshop-int+builder Robot Account and copy the token



• Back in the Start Pipeline form
  • At the buttom, click on Show credential options and then Add secret
  • Set these values
    • Secret name : quay-workshop-int-token
    • Access to : Image Registry
    • Authentication type : Basic Authentication
    • Server URL : quay-quay-quay.apps.<DOMAIN>/openshift_workshop-int (replace your cluster domain if necessary)
    • Username : openshift_workshop-int+builder
    • Password or token : the token you copied from the Quay Robot Account before …
  • Then click on the checkmark below to add the secret
  • The secret has just been added and will be mounted automatically everytime the pipeline runs
• Hit Start

If the pipeline fails you may have to recheck the Secret quay-workshop-int-token directly if the username and password are set correctly.

Once the Pipeline run has finished, go to the Quay Portal and check the Repository openshift_workshop-int/workshop again. Under Tags you should now see a new workshop Image version that was just pushed by the pipeline.

Congratulations: Quay is now a first level citizen of your pipeline build strategy.

Create an ImageStream Tag with an Old Image Version

Now that your build pipeline has been set up and is ready. There is one more step in preparation of the security part of this workshop. We need a way to build and deploy from an older image with some security issues in it. For this we will add another ImageStream Tag in the default Java ImageStream that points to an older version with a known CVE issue in it.

• Using the OpenShift Administrator view, switch to the project openshift and under Builds click on ImageStreams
• Search and open the ImageStream java
• Switch to YAML view and add the following snippet to the spec > tags: section.
  • Be careful to keep the needed indentation!

- name: java-old-image
  annotations:
    description: Build and run Java applications using Maven and OpenJDK 8.
    iconClass: icon-rh-openjdk
    openshift.io/display-name: Red Hat OpenJDK 8 (UBI 8)
    sampleContextDir: undertow-servlet
    sampleRepo: "https://github.com/jboss-openshift/openshift-quickstarts"
    supports: "java:8,java"
    tags: "builder,java,openjdk"
    version: "8"
  from:
    kind: DockerImage
    name: "registry.redhat.io/openjdk/openjdk-11-rhel7:1.10-1"
  generation: 4
  importPolicy: {}
  referencePolicy:
    type: Local

This will add a tag java-old-image that points to an older version of the RHEL Java image. The image and security vulnerabilities can be inspected in the Red Hat Software Catalog here

• Have a look at version 1.10-1

We will use this tag to test our security setup in a later chapter.

Create a new Project

For the subsequent exercises we need a new project:

• Create a new OpenShift Project workshop-prod

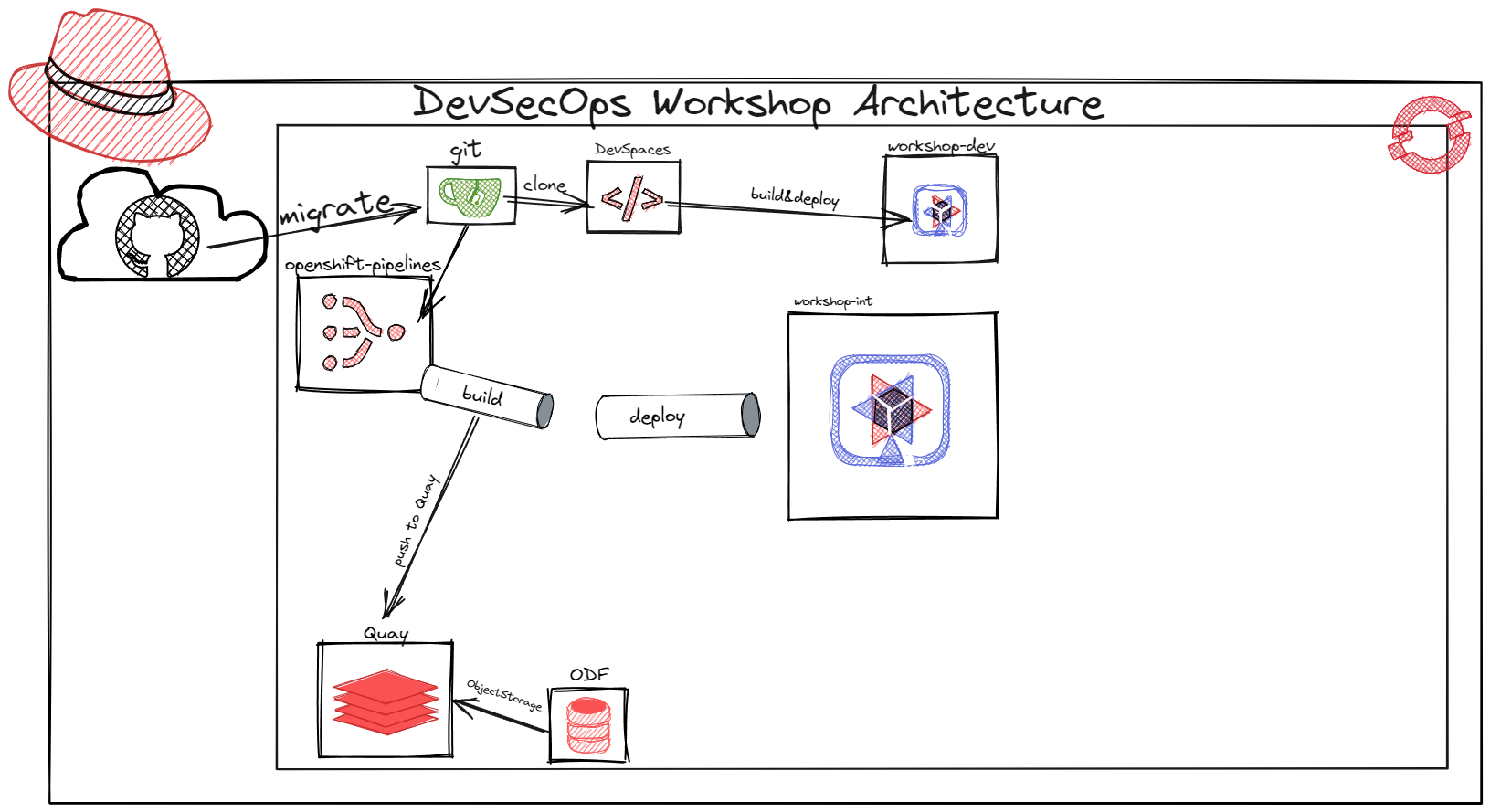

Architecture recap
